YCHAIN HD950H2U USB3.0 HD Broadcast Video Camera
Key Features
l Superb high-definition image experience
The HD950H2U employs high quality HD CMOS sensor, frame rate up to 1080p60/50, providing super smooth video, makes full high definition comes true.
l Multi-Format Video Outputs
The HD950H2U provides USB2.0, USB3.0 and HDMI interface, supporting 1080p60/50/30/25, 720p60/50/30/25 format HD video for mee the different needs of application.
l Lifelike video image
Based on the unique Iridix exposure dynamic control algorithm, the HD950H2U delivers detailed and vivid images.
l 12x optical zoom
The HD950DUN has a maximum zoom ratio of 12x optical zoom. High performance lens with fast and stable auto focus capability. With high precision PTZ position, the user easily to remote shooting.
l A variety of white balance modes selection - the perfect color experience
A variety of white balance modes: automatic white balance, automatic white balance, white balance, etc., to meet the requirements of users in different environments. While providing standard, soft, vivid three kinds of picture setup modes, in order to meet the needs of users of the image colors.
l Optional upside down installation
Structurally, the HD950H2U supports upside down installation. Also the installation mode can be changed via OSD menu setting or remote controller or serial command.
l RS-232C remote control (VISCA protocol)
All camera settings and pan/tilt/zoom control functions can be performed remotely at high communication speeds via the RS-232C interface. By using RS232 cascading interface, two or more cameras can be connected synchronously.
l Low noise and High SNR
The HD950H2U applies low noise sensor, decreasing image noise effectively and also improving SNR.
l Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism, the HD950H2U briadcast camera is extremely quiet and moves smoothly and very quickly to designated position, also covers a wide shooting range.

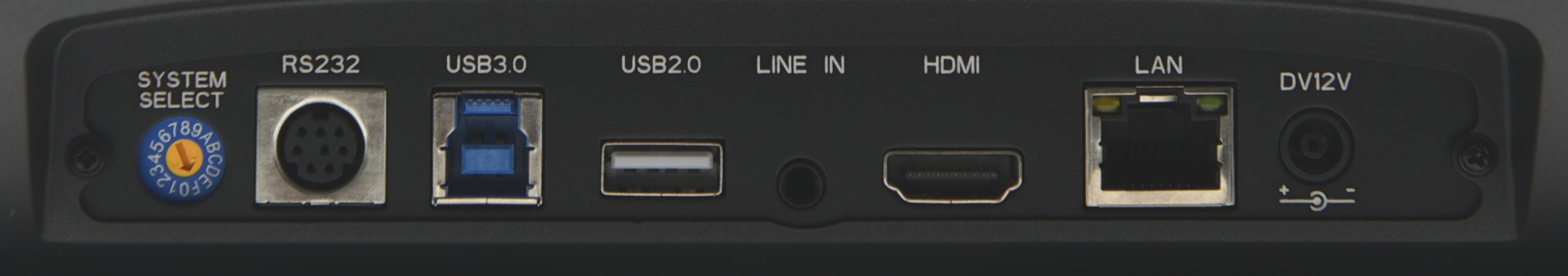

Back Panel
Technical Specification
|
Model |
YCHAIN HD950H2U |
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|
Pixels |
Dynamic image: 16: 9 2,070,000 effective pixel; Static image: 16: 9 2,100,000 effective pixel |
|
Video signal |
1080p60/50/30/2559.94/29.97、1080I 60/50/59.94、 720p60/50/30/25/59.94/29.97 |
|
Zoom |
12x optical zoom, f＝3.9～46.8mm |
|
View angle |
70.4°(far)、6.6°(near) |
|
Minimum lux |
0.5 Lux |
|
White balance |
Auto/ Manual |
|
Focus |
Auto/ Manual |
|
Iris |
Auto/ Manual |
|
Electronic shutter |
Auto/ Manual |
|
BLC |
Open/close |
|
S/R |
＞55dB |
|
Input / Output interfaces |
|
|
HD interfaces (optional ) |
USB2.0、USB3.0、HDMI |
|
Control interfaces |
8 pin mini DIN |
|
Control Signal Format |
Start bit: 1; Data bit: 8; Stop bit: 1; Baud Rate: 9600bps |
|
General specification |
|
|
Mechanism |
Rotation Range：Pan : ±170°; Tilt : -30° ～ +90°； |
|
Manual control speed：Pan: 0.1-100°/sec; ilt: 0.1-30°/sec |
|
|
Preset control speed：Pan: 60°/sec; Tilt: 30°/sec |
|
|
Power Supply Adapter |
AC100V-AC220V |
|
Input voltage |
DC12V |
|
Consumption |
＜12W(max) |
|
Store temperature |
-10℃ to +60℃ |
|
Working temperature |
-10℃ to +50℃ |
|
Dimension （W x H x W） |
258mm×172mm×169mm |
|
Weight |
1.6KG |
